crydom快达交流输出CWD系列

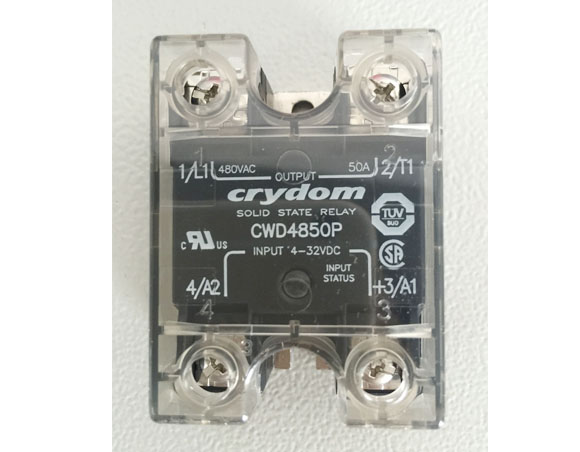

快达固态继电器面板安装交流输出CWD系列

Details

产品详情

The newest family to the SSR range. Ratings from 10 A to 125 A @ 24-280和24-660 VAC - SCR output for heavy industrial loads - EMC Compliant for reliable operation in harsh environments - Removable IP 20 touch-safe cover - DBC substrate for superior thermal performance - LED input status indicator - AC or DC input - zero voltage (resistive loads) or instantaneous turn on (inductive loads) output

快达固态继电器面板安装交流输出CWD系列规格型号如下:

零件编号	控制电压	大负载电流	线电压范围
CWD2410	3-32 VDC	10 A	24-280 VAC
CWD2410-10	3-32 VDC	10 A	24-280 VAC
CWD24125	3-32 VDC	125 A	24-280 VAC
CWD24125-10	3-32 VDC	125 A	24-280 VAC
CWD2425	3-32 VDC	25 A	24-280 VAC
CWD2425-10	3-32 VDC	25 A	24-280 VAC
CWD2450	3-32 VDC	50 A	24-280 VAC
CWD2450-10	3-32 VDC	50 A	24-280 VAC
CWD2490	3-32 VDC	90 A	24-280 VAC
CWD2490-10	3-32 VDC	90 A	24-280 VAC
CWD4810	4-32 VDC	10 A	48-660 VAC
CWD4810-10	4-32 VDC	10 A	48-660 VAC
CWD48125	4-32 VDC	125 A	48-660 VAC
CWD48125-10	4-32 VDC	125 A	48-660 VAC
CWD4825	4-32 VDC	25 A	48-660 VAC
CWD4825-10	4-32 VDC	25 A	48-660 VAC
CWD4850	4-32 VDC	50 A	48-660 VAC
CWD4850-10	4-32 VDC	50 A	48-660 VAC
CWD4890	4-32 VDC	90 A	48-660 VAC
CWD4890-10	4-32 VDC	90 A	48-660 VAC
